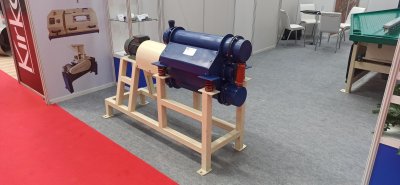

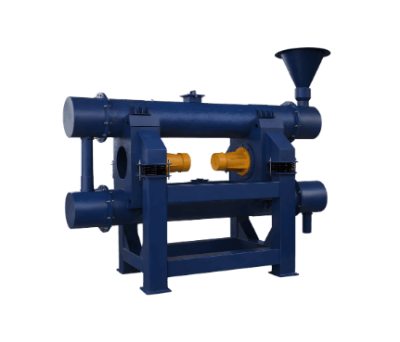

Vibratory Mill

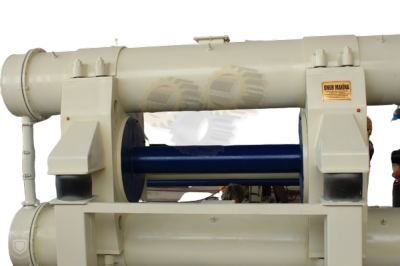

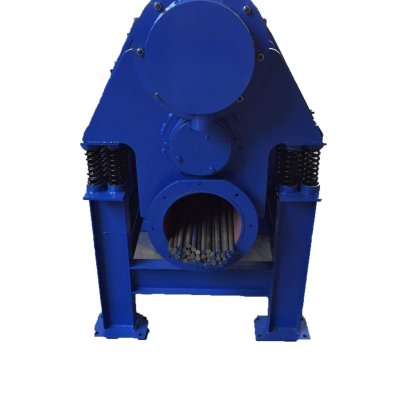

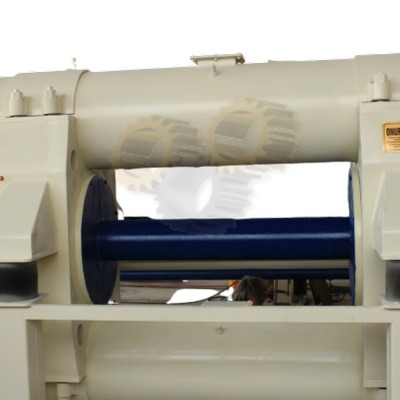

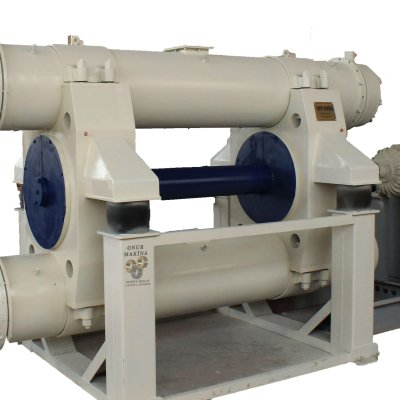

Available in rod and ball type configurations, these mills achieve crushing and grinding by generating friction forces through vibration between the rods and balls inside. They can grind materials down to below 5 microns using heat-treated grinding material. They offer the option of single-tube or in-line double-tube configurations depending on requirements. Our mills are available in ball and rod types according to the process. To determine the appropriate mill size, it is sufficient to specify the feed particle size, product particle size, ore characteristics, and the desired hourly capacity.
Product Description
Mills that can be used as rod and ball mills provide crushing and grinding by creating friction forces along with vibration of the rods and balls inside.
With heat-treated grinding media, it can perform grinding processes down to below 5 microns. It provides the possibility of using a single tube or sequential double tubes upon request.
Our mills are used as ball or rod mills depending on the processes.
| Model | H150 | H350 | H500 |
|---|---|---|---|
| Capacity (kg/h) | 10 – 100 | 150 – 600 | 500 – 2500 |
| Motor Power | 1.5 kW | 7.5 kW | 22 kW |
| Dimensions | ~ 1650 × 1050 × 1550 mm | ~ 2500 × 2000 × 1250 mm | 3500 × 1800 × 2500 mm |
| Weight | ~400 kg | ~ 1600 kg | ~ 3500 kg |
| Feed Size | ~ < 2 mm | ~ <2 mm | ~ < 2 mm |
| Output Size | ~ < 5 μ | ~ <5 μ | ~ < 5 μ |
| Chamber Volume | 75 lt | 250 lt | 400 lt |
Key Features
Replaceable Grinding Media and Liner Structure for Suitable Grinding Environment

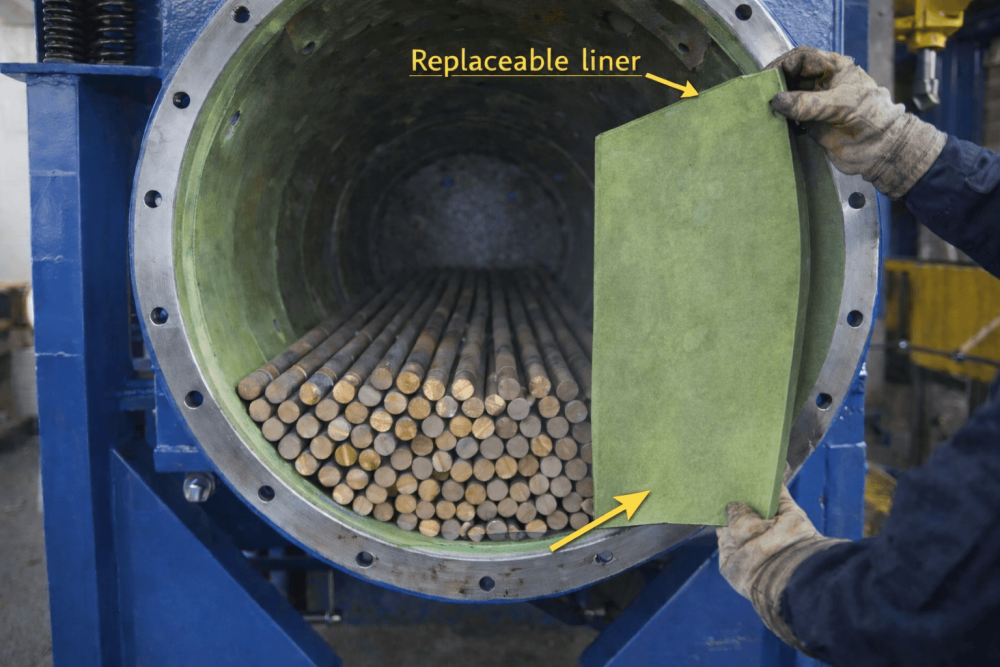

- Grinding media and mill liners can be replaced with porcelain, silex, rubber, or stainless steel.
- This enables iron-free grinding conditions.
Capacity and Product Control Through Cylinder Operation Configuration

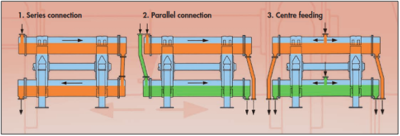

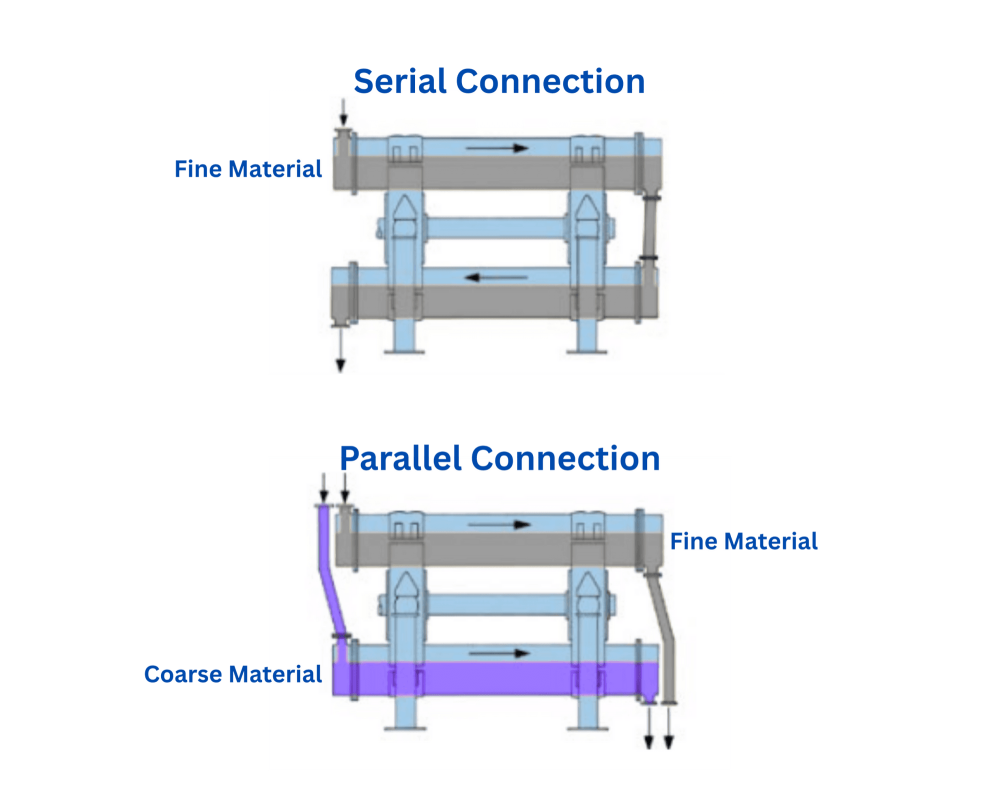

- Grinding cylinders can be operated in series for fine grinding.
- For coarser materials, they can be operated in parallel, doubling the capacity.

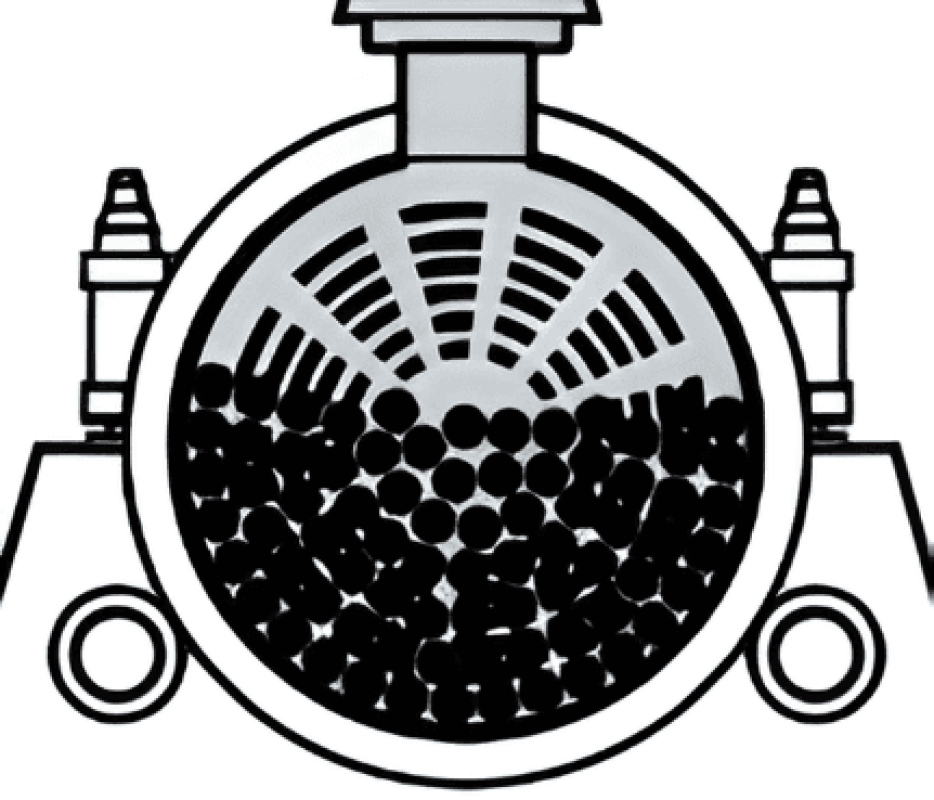

High Filling Ratio for Fine Grinding
- The filling ratio in the grinding cylinders can reach up to 80%, allowing finer grinding.
- It is ideal for regrinding materials and can reduce particle size down to 1 micron.
Technical Specifications
| Model | H150 | H350 | H500 |
|---|---|---|---|
| Capacity (kg/h) | 10 – 100 | 150 – 600 | 500 – 2500 |
| Motor Power | 1.5 kW | 7.5 kW | 22 kW |
| Dimensions | ~ 1650 × 1050 × 1550 mm | ~ 2500 × 2000 × 1250 mm | 3500 × 1800 × 2500 mm |
| Weight | ~400 kg | ~ 1600 kg | ~ 3500 kg |
| Feed Size | ~ < 2 mm | ~ < 2 mm | ~ < 2 mm |
| Output Size | ~ < 5 μ | ~ < 5 μ | ~ < 5 μ |
| Chamber Volume | 75 lt | 250 lt | 400 lt |

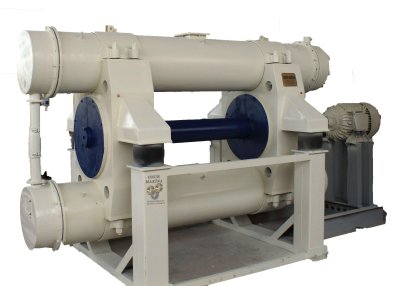

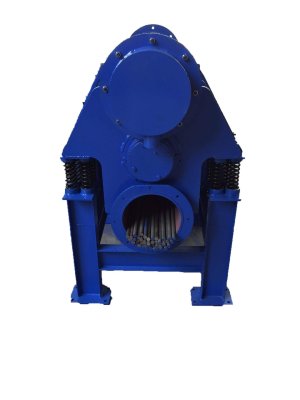

Product Images
