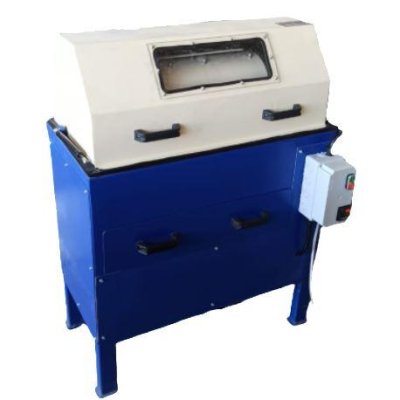

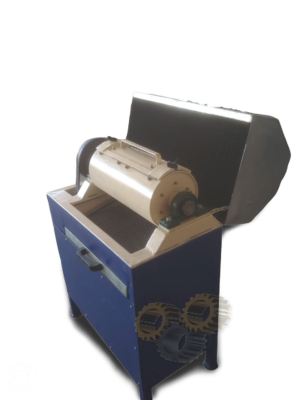

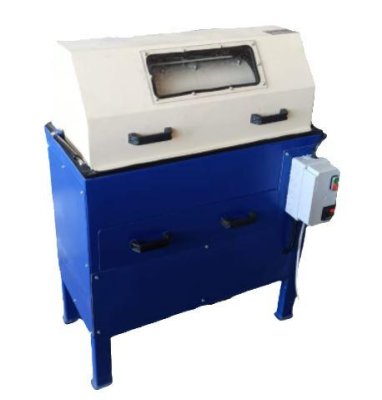

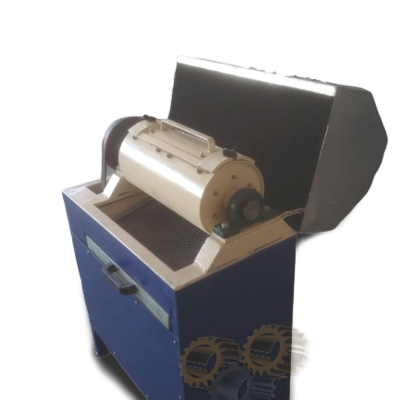

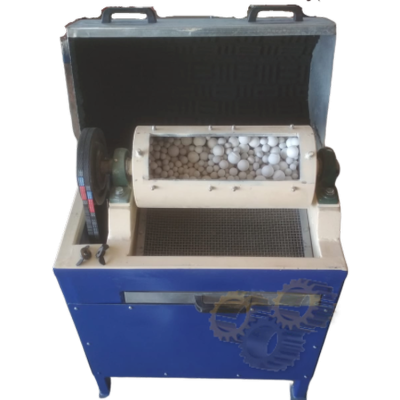

D Series Ball Mill
Our D series fill-and-empty ball mills are designed for grinding small quantities of material. Drum rotation speed, ball sizes, and drum shape are important factors for the grinding process. Options include alumina balls, zirconia balls, and steel balls. Features include a stainless steel liner, sound insulation, adjustable grinding interval timer, easy filling and emptying, speed control device, and an optional HDPE (high-density polyethylene) liner.
Product Description
Our D series batch-type ball mills are designed for grinding small quantities of materials.
The rotation speed of the drum, the ball sizes, and the shape of the drum are important factors for the grinding process.

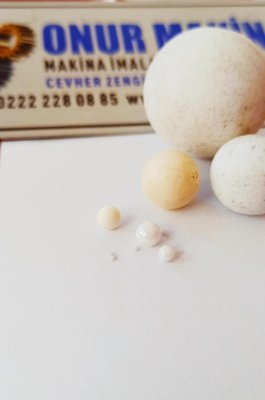

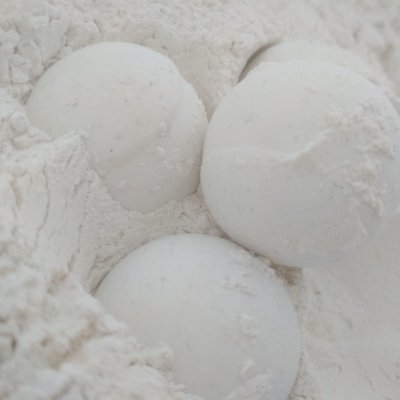

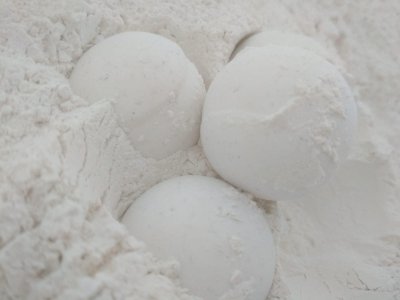

- Alumina ball, Zirconium, and steel ball options
- Stainless steel lining
- Sound insulation
- Adjustable timed grinding interval (timer)
- Possibility for easy loading and unloading
- Speed control device
- Optional HDPE (High-density polyethylene) lining.
| Model | D12 | D24 | D48 |
|---|---|---|---|
| Capacity | 12 lt | 24 lt | 48 lt |
| Motor Power | 0.75 kW | 1.1 kW | 2.2 kW |
| Dimensions | ~1200×1200×500 mm | ~1600×1600×600 mm | ~1700×1700×750 mm |
| Weight | ~150 kg | ~350 kg | ~500 kg |
| Feed Size | <0–10 mm | <0–10 mm | <0–12 mm |
| Output Size | ~5 μm – 1 mm | ~5 μm – 1 mm | ~5 μm – 1 mm |
Technical Specifications
| Model | D12 | D24 | D48 |
|---|---|---|---|
| Capacity | 12 lt | 24 lt | 48 lt |
| Motor Power | 0.75 kW | 1.1 kW | 2.2 kW |
| Dimensions | ~1200 × 1200 × 500 mm | ~1600 × 1600 × 600 mm | ~1700 × 1700 × 750 mm |
| Weight | ~150 kg | ~350 kg | ~500 kg |
| Feed Size | < 0–10 mm | < 0–10 mm | < 0–12 mm |
| Output Size | ~5 μm – 1 mm | ~5 μm – 1 mm | ~5 μm – 1 mm |

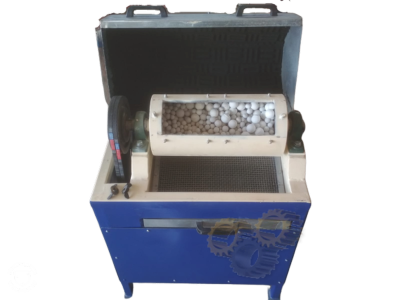

Product Images
Product Videos
