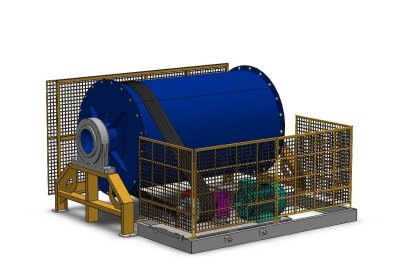

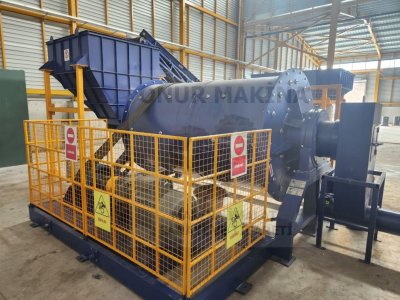

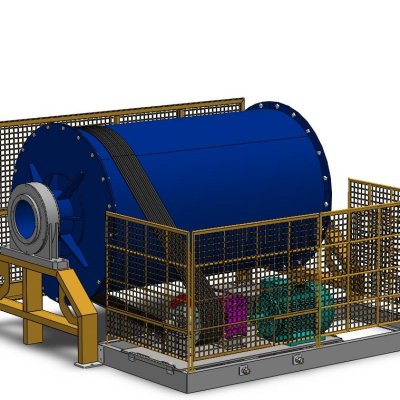

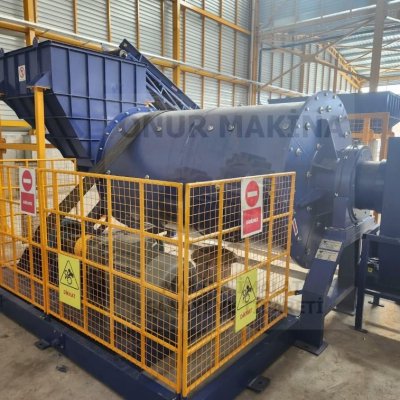

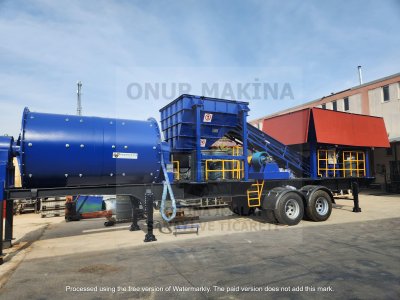

B Series Ball Mill
A ball mill is a grinding machine that operates on the principle of a rotating cylindrical drum and is used to reduce materials to finer particle sizes. Inside the drum, grinding balls move together with the material, creating impact and friction forces. Through this mechanical action, the material is gradually broken down and reduced to the desired particle size. Ball mills are widely used in mining, mineral processing, and similar industries for grinding and size reduction processes.
Product Description
The B Series Ball Mills are durable and efficient grinding machines designed for mineral and ore grinding applications. The machine body is manufactured from S235 carbon steel, providing a rigid structure suitable for heavy-duty operating conditions. The grinding chamber is equipped with a special rubber lining, which helps protect the mill body against wear while also reducing the impact forces generated during operation.
The system is equipped with automatic lubrication, safety guards, and emergency stop systemsto ensure safe and reliable operation. The mills are suitable for materials withfeed sizes below 30 mm, and high-carbon alloy forged steel balls can be used as the grinding media.
Key Features
Efficient Grinding System
- Suitable for materials with feed size below 30 mm.
- High carbon alloy forged steel balls can be used as grinding media.
- Grinding occurs through impact and friction forces between the rotating balls and the material.
Durable Machine Body
- The machine body is manufactured from S235 carbon steel.
- Designed with a rigid structure suitable for heavy-duty operating conditions.
- Supported by carbon steel bearing housings.
Technical Specifications
| Model | Power | Dimensions (D×L) | Weight |
|---|---|---|---|
| B1000 x 1500 | 15 kW | 1000 × 1500 mm | ~3.6 t |
| B1200 x 2000 | 30 kW | 1200 × 2000 mm | ~6.2 t |
| B1500 x 2500 | 55 kW | 1500 × 2500 mm | ~9 t |
| B1800 x 3000 | 90 kW | 1800 × 3000 mm | ~12.4 t |
