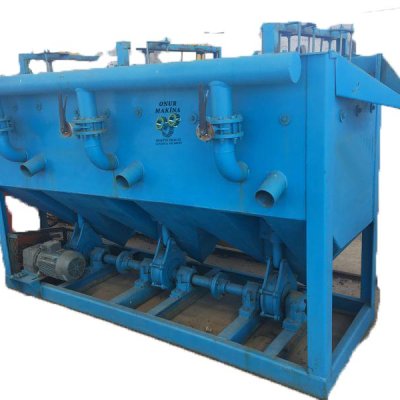

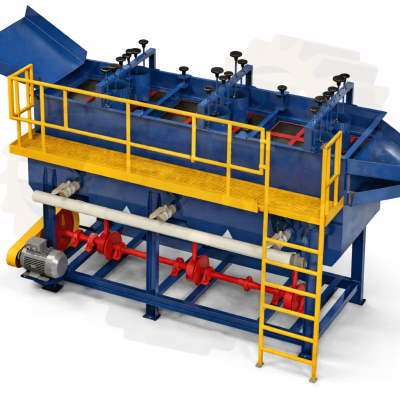

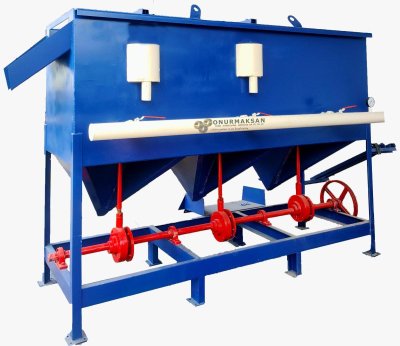

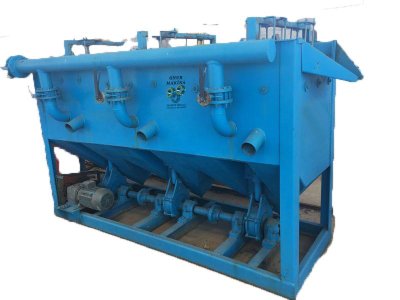

Jig

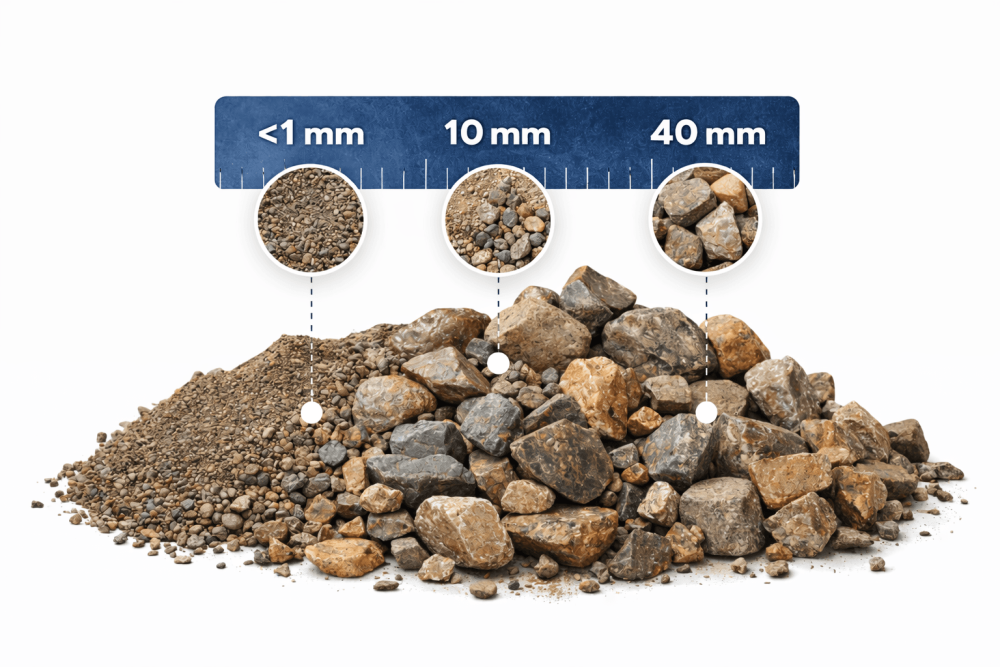

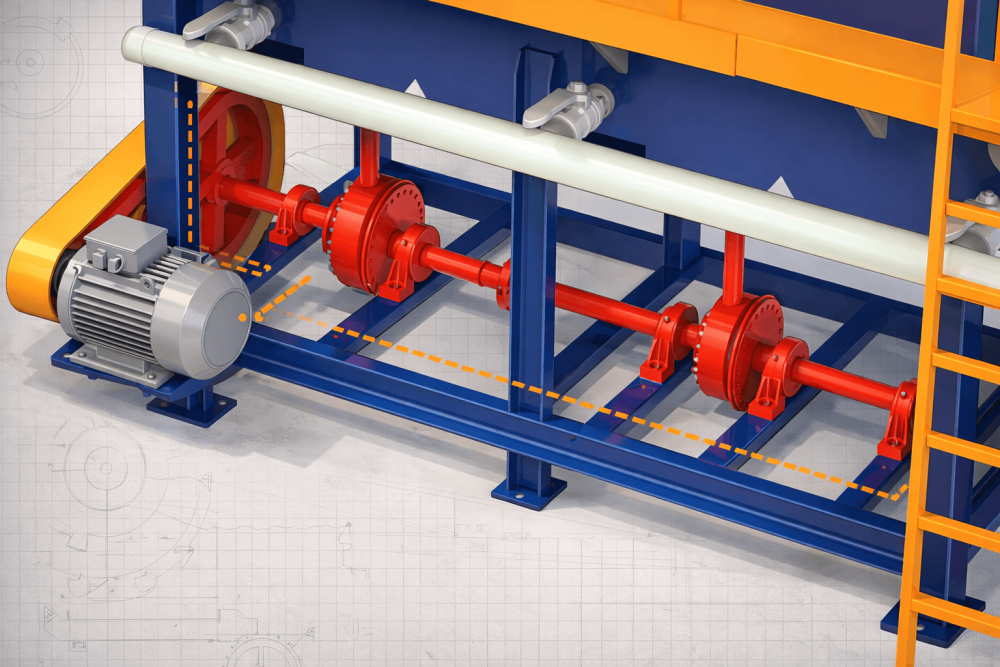

The jig is capable of ore enrichment up to 40mm. Maximum efficiency is targeted thanks to the use of first-class body materials and a high-torque drive system. 1mm and 2mm high-strength polyurethane screens offer extended operation time. We manufacture 5 different capacity jigs: 2 types for laboratory use and 3 types for industrial use.
Product Description
The Jig can perform ore enrichment up to 40mm. Maximum efficiency is aimed for thanks to the 1st class body material used and the high-torque drive system.

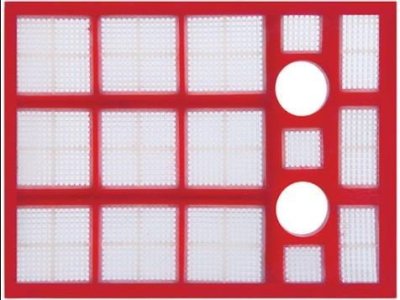

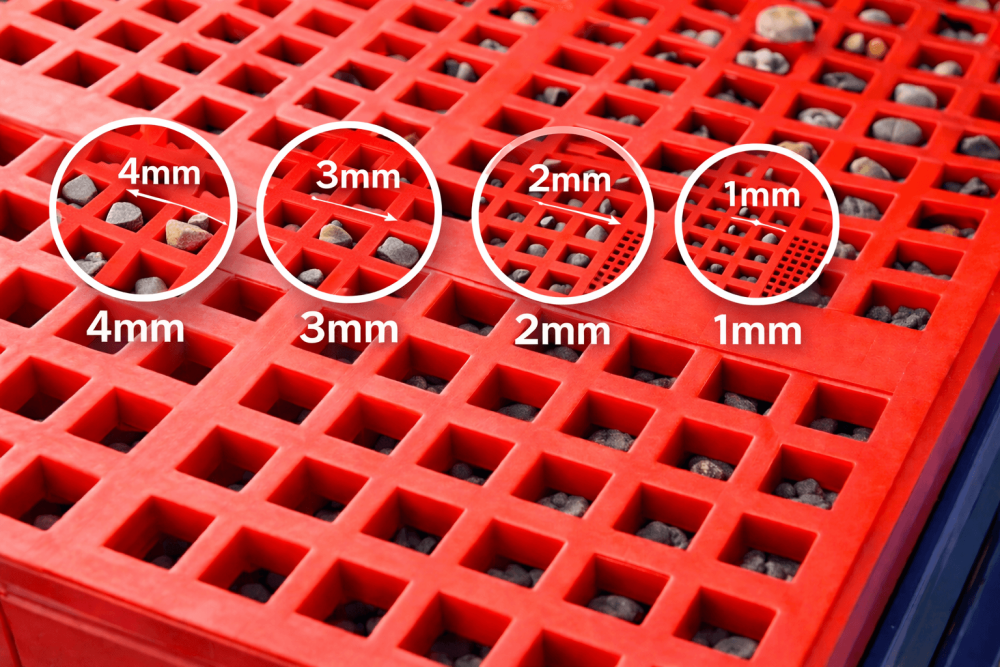

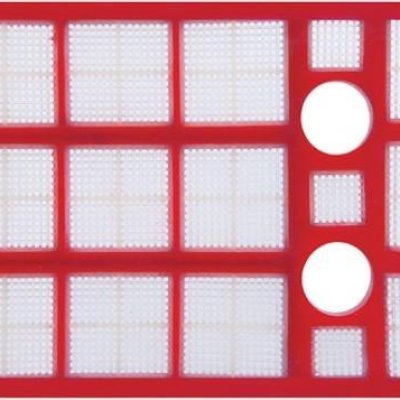

1mm and 2mm high-strength polyurethane screens offer the possibility of long-term operation.
We manufacture 5 different capacity jigs, including 2 laboratory types and 3 industrial types.
| Model | Jig L3g | Jig 2g | Jig 3g | Jig 4g |
|---|---|---|---|---|
| Capacity (kg/h) | < 160 | < 8000 | < 15000 | < 20000 |
| Power (kW) | 1.5 | 4 | 5.5 | 7.5 |
| Working Area (m²) | 1 | 2 | 3 | 4 |
| Screen Size (mm) | 300 × 300 | 1040 × 1180 | 1040 × 1180 | 1040 × 1180 |
Technical Specifications
| Model | Jig L3g | Jig 2g | Jig 3g | Jig 4g |
|---|---|---|---|---|
| Capacity (kg/h) | < 160 | < 8000 | < 15000 | < 20000 |
| Power (kW) | 1.5 | 4 | 5.5 | 7.5 |
| Working Area (m²) | 1 | 2 | 3 | 4 |
| Screen Size (mm) | 300 × 300 | 1040 × 1180 | 1040 × 1180 | 1040 × 1180 |

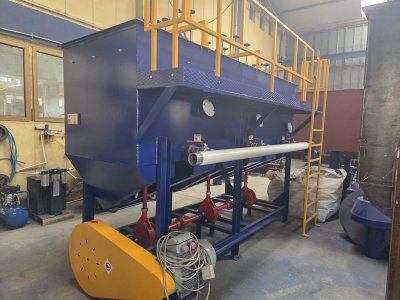

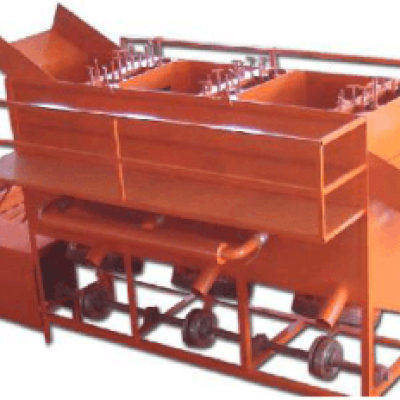

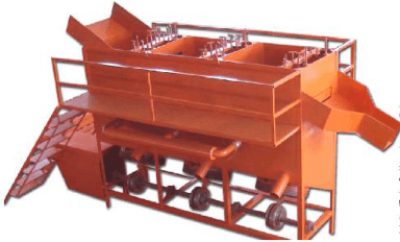

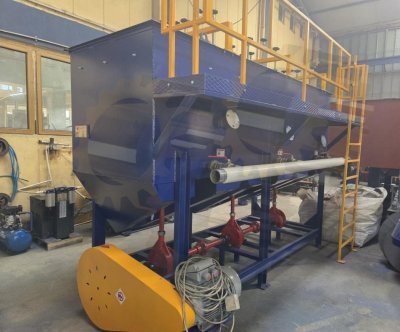

Product Images

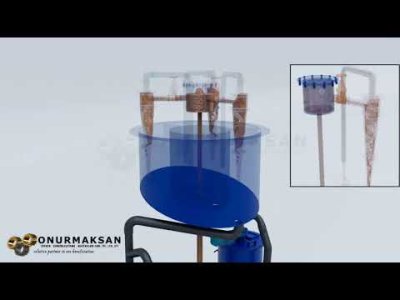

Product Videos
