Mobile enrichment plant;

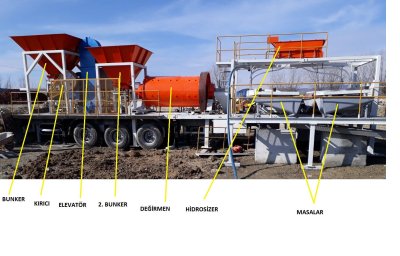

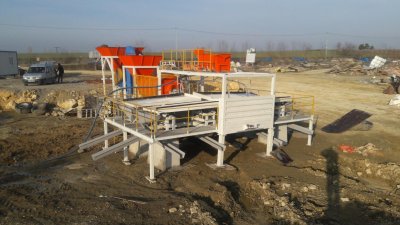

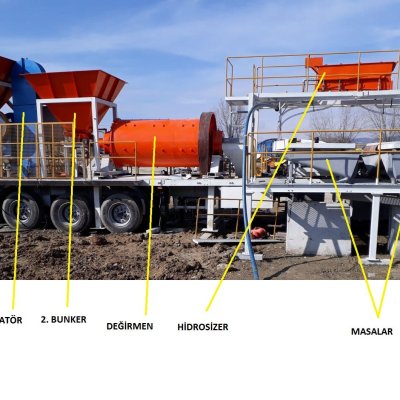

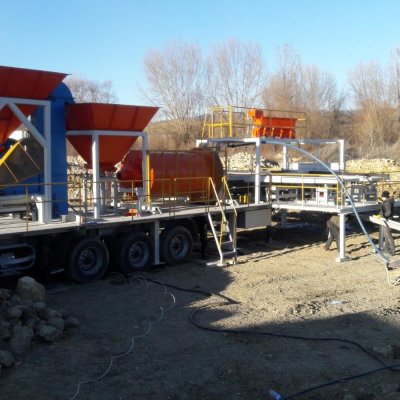

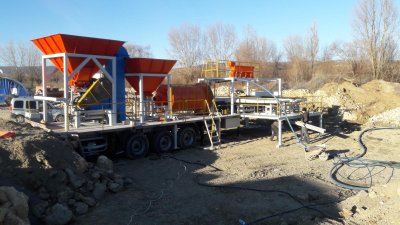

The mobile plant, which includes each of the crushing, grinding, screening, and enrichment groups, is designed to be portable. The plant is mounted on wheels and can be easily transported to the mine site with any tractor unit.

It provides seamless clean ore recovery with the machines installed on it, which are perfectly integrated with one another.

The plant is designed as a turnkey solution, and certain modifications can be made upon request.

Machine Groups Included;

Vibrating Hopper (4 m³)

40-type Jaw Crusher

Bucket conveyor belt

Vibrating Hopper (3 m³)

Ball Mill (ø 1400 x 2500 mm)

Trommel screen at mill outlet (ø 500 x 1200)

Pump (2 units)

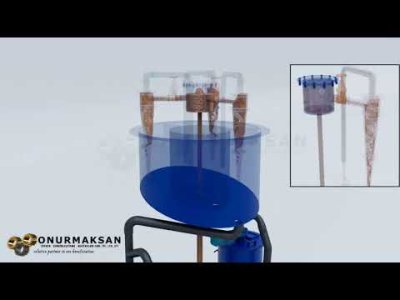

Hydrosizer (Number of compartments may vary according to the number of tables)

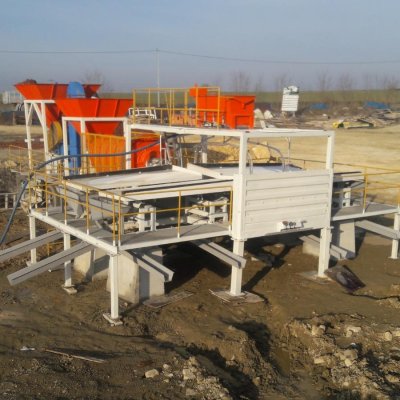

Shaking Table (3000 x 1400 mm - 4 units)

Gemini Table (Gold Enrichment Table, provided as an option)

Approximate Total Power: 42-48 kW

Note: A generator can be added to the electrical installation circuit upon request.
