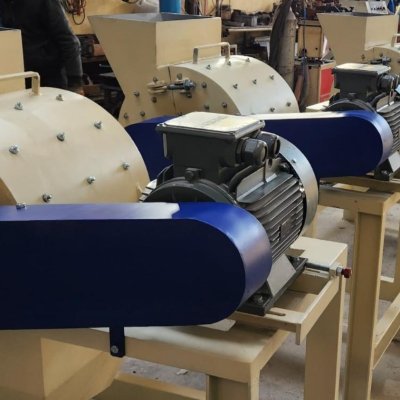

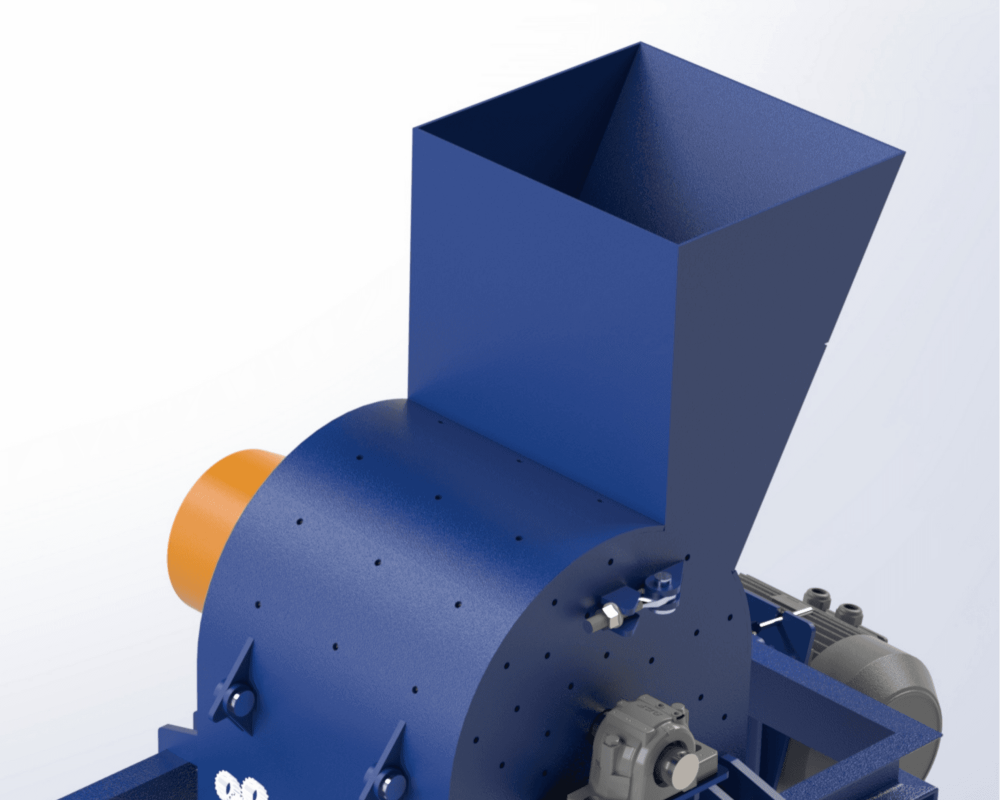

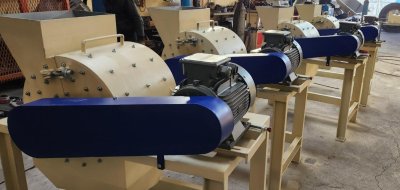

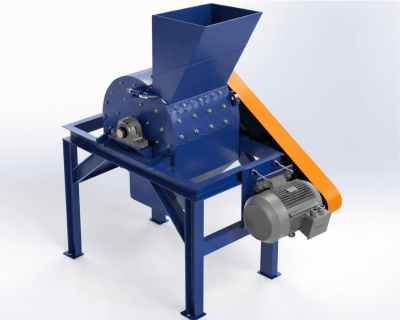

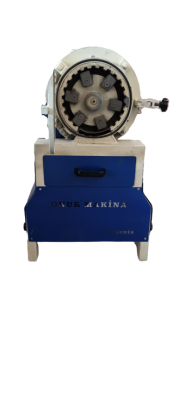

Hammer Crusher

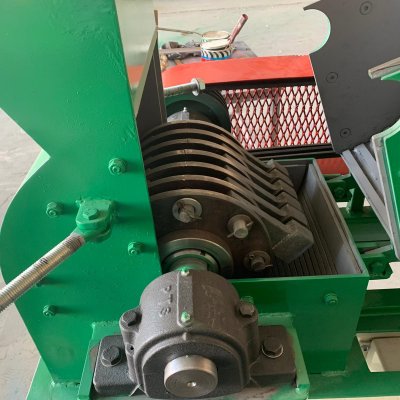

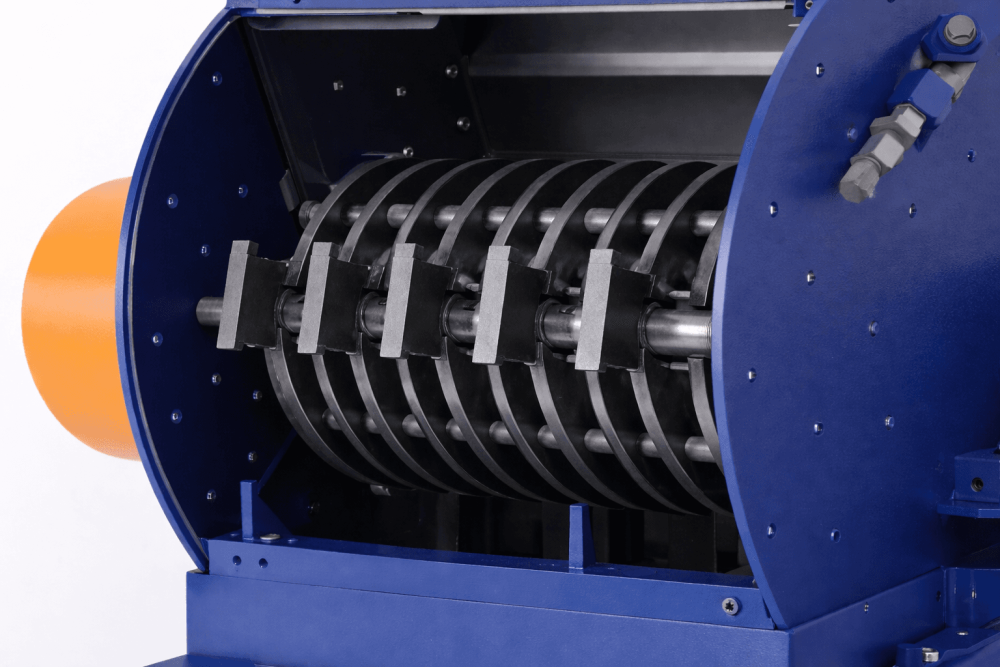

Hammer crushers are crushing machines that break and grind materials by impact force through hammers mounted on high-speed rotating rotors. The machine consists of a cylindrical housing, a rotor shaft, and hammers attached to the rotor. The fed material is fragmented by the high kinetic energy generated by the rotating hammers and reduced to the desired particle size. These crushers are widely used in mining, quarrying, recycling, cement, chemical, and industrial mineral processing plants, particularly in secondary and tertiary crushing stages. Thanks to their simple mechanical structure, they offer low maintenance requirements and reliable continuous operation. These crushers are widely used in mining, quarrying, recycling, cement, chemical, and industrial mineral processing plants, particularly in secondary and tertiary crushing stages. Thanks to their simple mechanical structure, they offer low maintenance requirements and reliable continuous operation.

Download Catalog

Product Description

Hammer crushers manufactured by our company provide stable and uniform crushing performance thanks to their high-capacity rotor design and optimized hammer geometry. The controlled material flow within the crushing chamber ensures a consistent and homogeneous particle size distribution.

Equipped with 16–18% manganese alloy cast hammers and manganese cast inner liners, our machines deliver high wear resistance and long service life even when processing abrasive and hard materials. The welded crusher body, manufactured from heat-treated low-carbon steel, reduces vibration and enables quiet and balanced operation.

With a wide grinding range, dry operation capability, and easy maintenance features, operating costs are minimized while operator safety is maximized through the integrated safety cover.

The machine complies with ISO 9001:2015, TS EN 12100:2011, EN 60204-1 Machinery Safety Regulations, and CE standards.

Advantages

• High crushing efficiency and capacity

• Effective crushing performance for materials of all hardness levels
• Low maintenance requirements and easy spare part replacement
• Wear-resistant manganese alloy hammers
• Long service life
• Dry operation capability
• Homogeneous product particle size distribution
• Low operating costs
• Quiet and balanced operation
• Enhanced operator safety systems

Key Features

Robust Body Structure

Heat-treated, low-carbon steel body
Welded and vibration-damping design
Long-term, stable operation

High-Durability Crushing System

16–18% manganese alloy cast hammers
Manganese cast inner liners
High resistance to wear

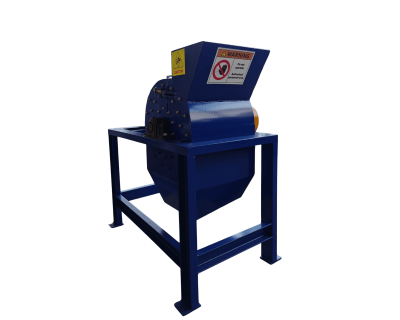

Safety Cover

Prevents material from being thrown out
Minimizes splashing and enhances operator safety
Reduces blockages inside the hopper
Enables safe and controlled material feeding

Technical Specifications

Model	CD 100	CD 250	CD 500
Capacity (kg/h)	< 150	< 1200	< 5000
Motor Power	2.2 kW	5.5 kW	11 kW
Feed Size (mm)	< 15	< 25	< 40
Output Size (micron)	< 2000	< 2000	< 2000
Dimensions (L×W×H) mm	600 × 350 × 100	800 × 400 × 1200	1200 × 800 × 1800
Weight	120 kg	250 kg	450 kg
