Jaw crushers break large stones by applying high pressure force to the material. Mechanical pressure is applied using the crusher's two jaws; one is stationary while the other moves in an elliptical motion. Jaw crushers are primarily used in laboratories, mines and quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, and various other applications for material grinding.
Jaw Crusher

Product Description

Jaw crushers break large stones using high pressure force applied to the material. Mechanical pressure is applied using the two jaws of the crusher; one is fixed while the other performs an elliptical movement. Jaw crushers are primarily used in laboratories, mines and quarries, sand and gravel, mining, construction and demolition recycling, construction aggregates, and at various stages of material grinding applications.

They are among the most preferred crushers due to their ability to break materials of any hardness. Low operating costs and easy maintenance possibilities are among the most important features that increase their preference.

ModelLK100LK200LK400
Feeding Capacity (Tph) tons/hour< 2.5 tons< 5 tons< 30 tons
Input Size (mm)<100<200<400
Output Size (mm)<2<5<10
Motor Power (kW)2.2411
Dimension (mm) – L × W × H1000 × 600 × 10001800 × 800 × 16002000 × 1100 × 1600
Weight (kg)120210650

Technical Specifications

ModelLK100LK200LK400
Feeding Capacity (Tph) tons/hour< 2.5 tons< 5 tons< 30 tons
Input Size (mm)<100<200<400
Output Size (mm)<2<5<10
Motor Power (kW)2.2411
Dimensions (mm) – L × W × H1000 × 600 × 10001800 × 800 × 16002000 × 1100 × 1600
Weight (kg)120210650

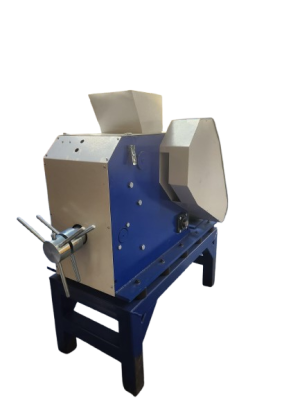

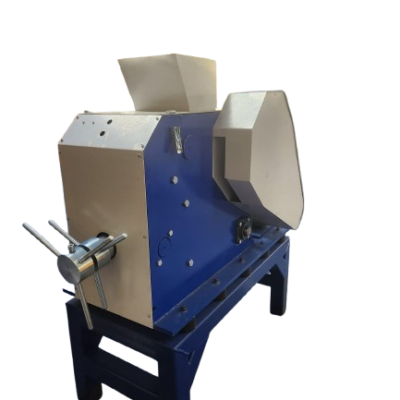

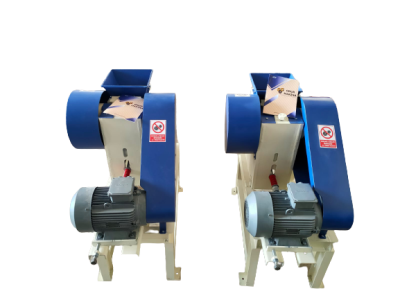

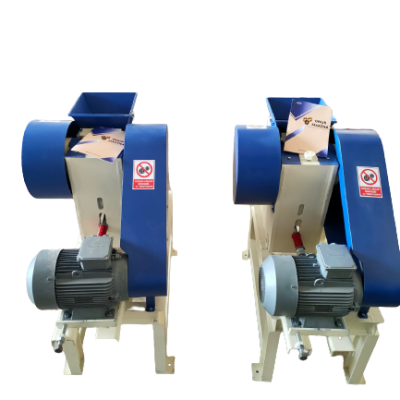

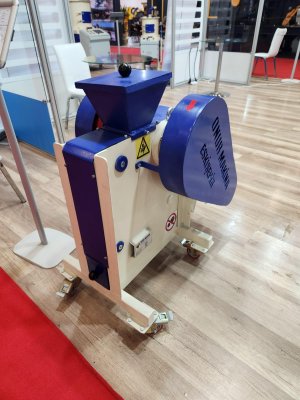

Product Images

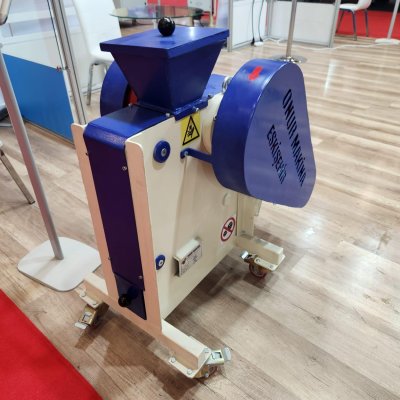

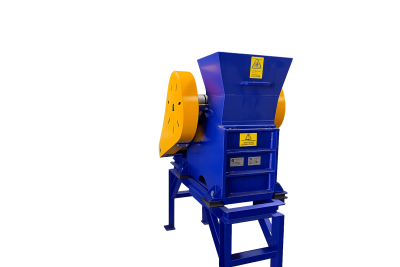

Jaw Crusher
Jaw Crusher
Jaw Crusher

Product Videos

Jaw Crusher
Jaw Crusher
