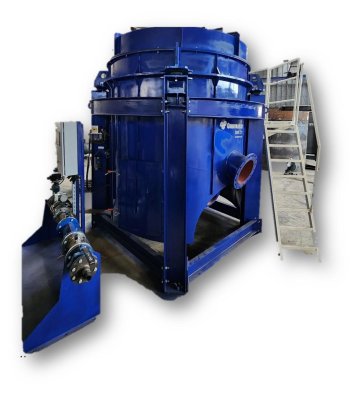

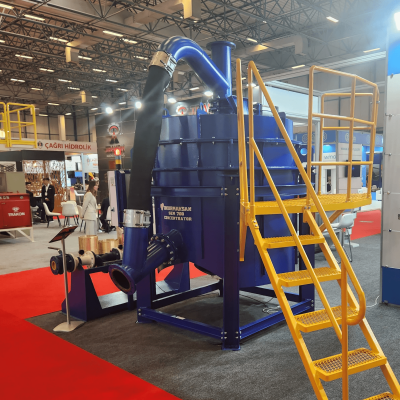

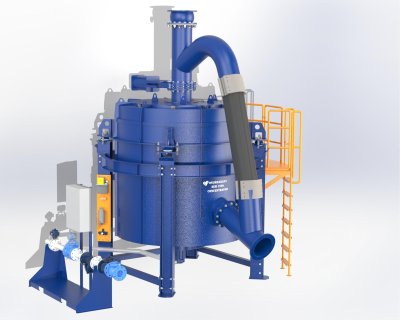

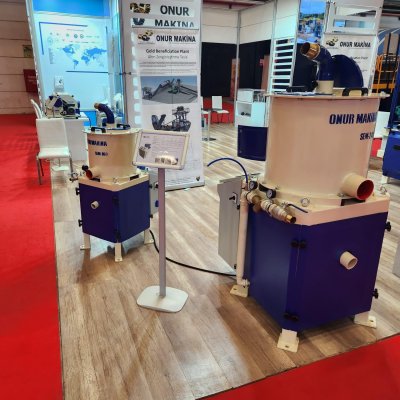

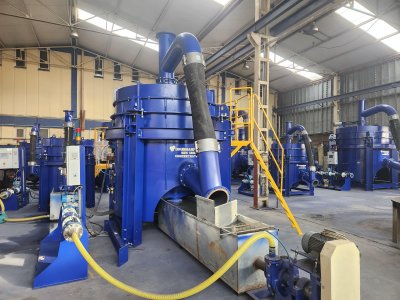

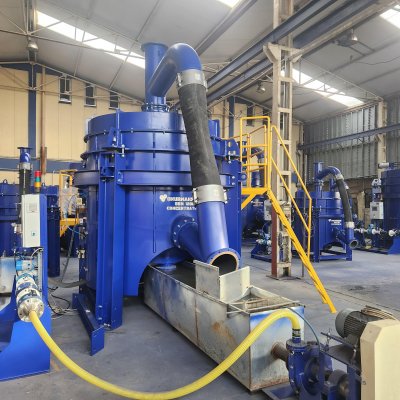

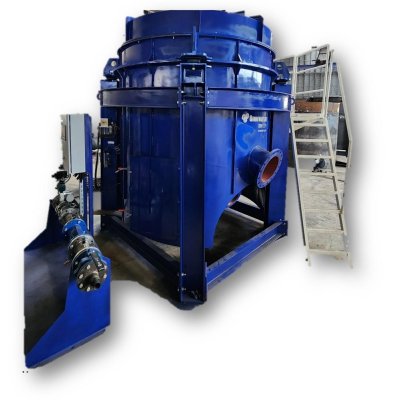

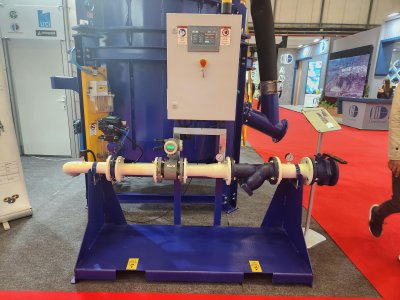

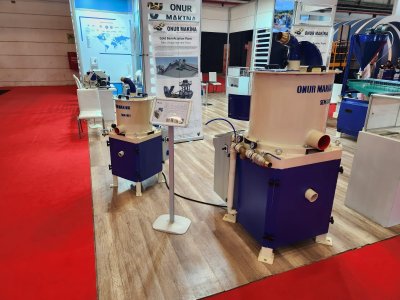

SEM Centrifuge Concentrator

The SEM Centrifugal Concentrator is an advanced gravity-based separation system designed for the efficient recovery of low-grade precious metals such as gold and platinum. Operating without the use of chemicals, the system delivers maximum performance even at fine particle sizes thanks to its high G-force and optimized internal design.

Download Catalog

Product Description

PRODUCT DESCRIPTION

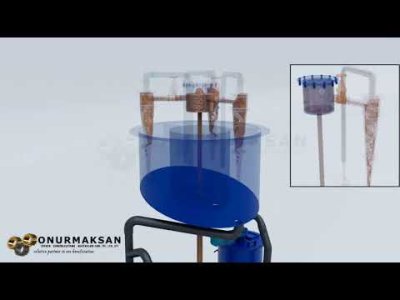

The SEM Centrifugal Concentrator is a high-efficiency system that separates free heavy minerals based on density differences. Developed with ONURMAKSAN’s experience in gravity separation machinery since 1996, it has been included in the product range since 2018.

With centrifugal forces reaching up to 200 G, the system provides high recovery rates, especially for fine particle sizes. Its ability to operate without chemicals or acids makes it an environmentally friendly and cost-effective solution.

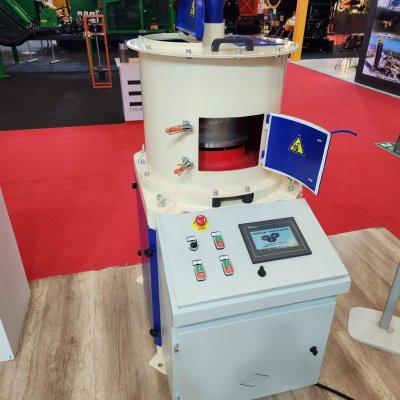

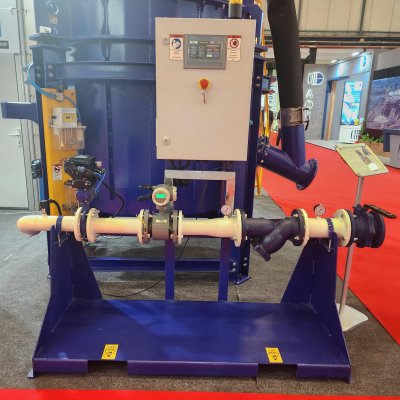

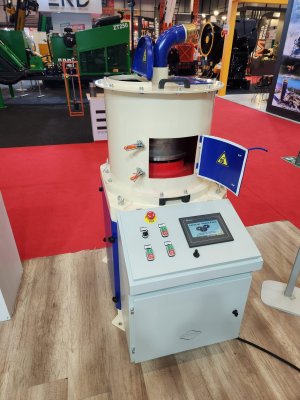

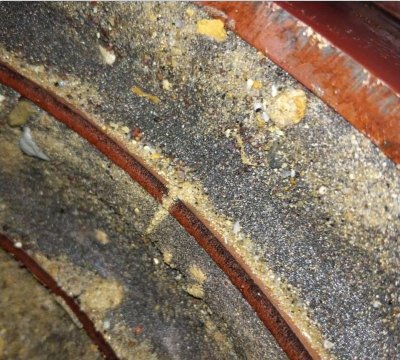

Thanks to its fully automated structure, the need for continuous operator supervision is minimized. All process parameters such as speed, water consumption, and air pressure can be easily controlled via the PLC system. The concentrate is automatically discharged and can be further processed using precision equipment such as a Gemini shaking table to obtain a final clean product.

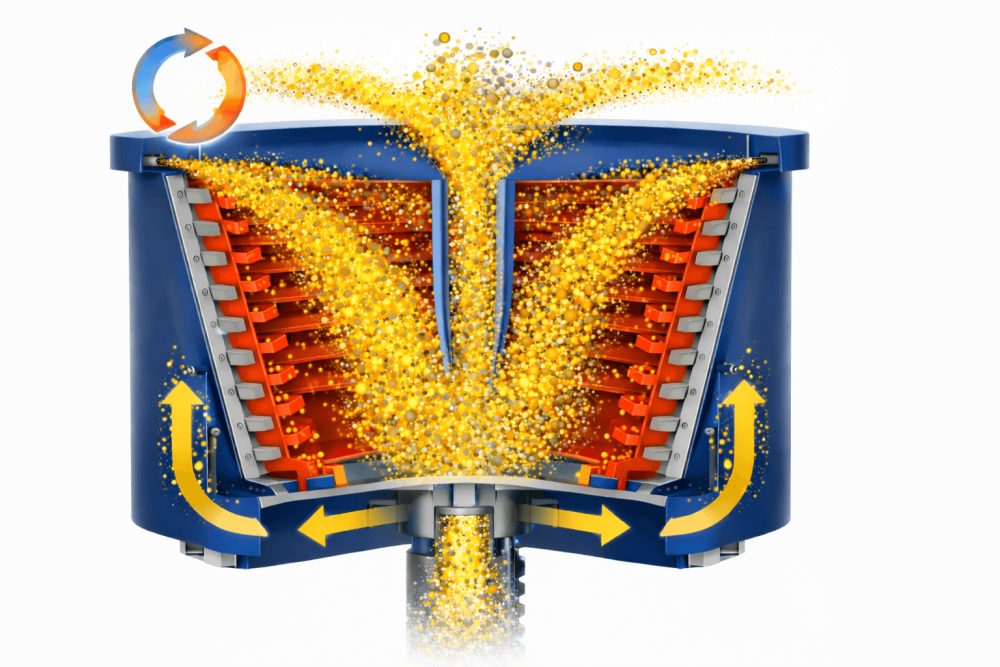

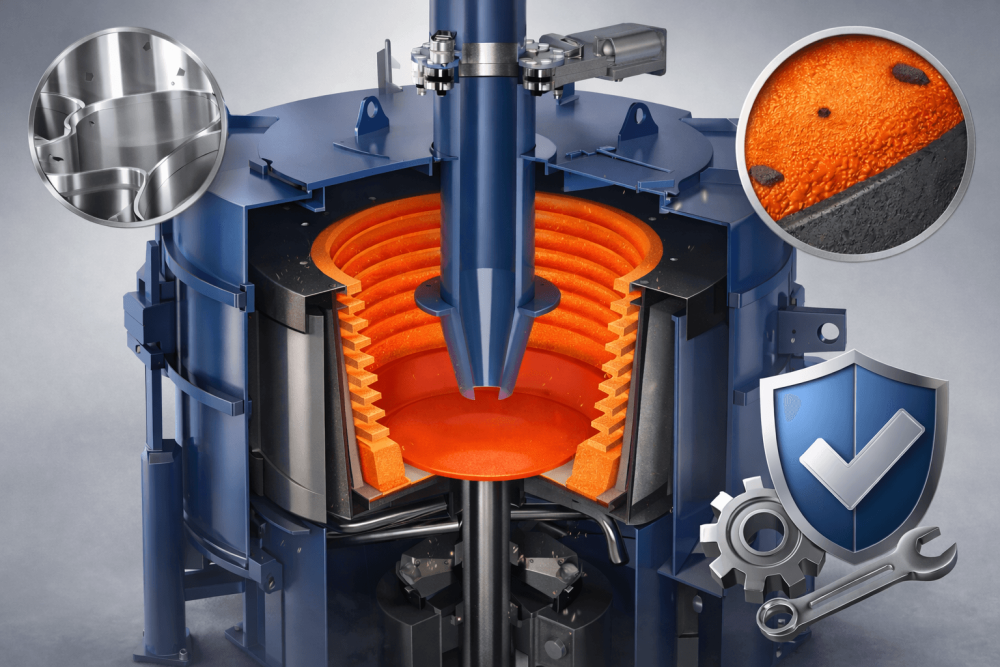

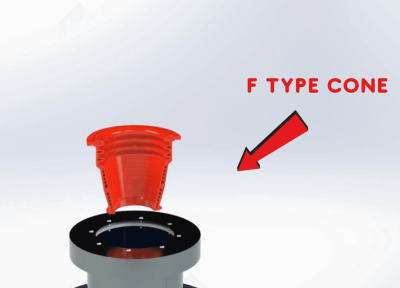

The system ensures long service life and stable operation with its stainless steel internal components, polyurethane lining, and specially designed SX cone structure, while requiring minimal maintenance.

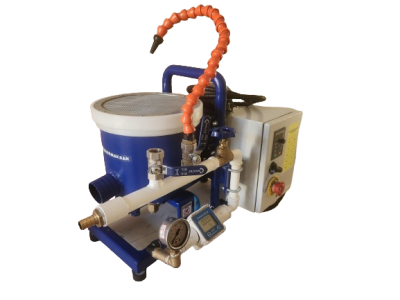

Model	SEMLAB	SEM160	SEM240	SEM500	SEM700	SEM1200
Capacity - solids (t/h)	< 0.1	< 3	< 15	< 80	< 110	< 400
Max Feed Size (mm)	<2	4	4	4	4	4
Motor Power	0.18	1.1 kW	4 kW	7.5 kW	15–22 kW	55–75 kW
Solids Ratio	< 50%	< 50%	< 50%	< 50%	< 50%	< 50%
Weight	~20 kg	~180 kg	~580 kg	~970 kg	~1870 kg	~5370 kg
Water Consumption	0.2 m³	1–3 m³	12–18 m³	15–24 m³	20–38 m³	30–70 m³

Key Features

Durable Internal Structure and Long Service Life

Manufactured with stainless internal components
High wear resistance with polyurethane lining
Suitable for heavy-duty operating conditions
Provides long-term operation with low maintenance requirement

Chemical-free Operating Principle

-Operates based on gravity (density) separation
-Does not require any chemicals or acids
-Offers an environmentally friendly process
-Reduces operating costs

High G-force (up to 200 G)

-Generates centrifugal force up to 200 G
-Provides high recovery even at fine particle sizes
-Increases efficiency in low-grade ores
-Ensures fast and effective separation of heavy minerals

Technical Specifications

Model	SEMLAB	SEM160	SEM240	SEM500	SEM700	SEM1200
Capacity - solids (t/h)	< 0.1	< 3	< 15	< 80	< 150	< 400
Max Feed Size (mm)	<2	4	4	4	4	4
Motor Power	0.18	1.1 kW	4 kW	7.5 kW	15–22 kW	55–75 kW
Solids Ratio	< 50%	< 50%	< 50%	< 50%	< 50%	< 50%
Weight	~20 kg	~180 kg	~580 kg	~970 kg	~1870 kg	~5370 kg
Water Consumption	0.2 m³	1–3 m³	12–18 m³	15–24 m³	20–38 m³	30–70 m³
