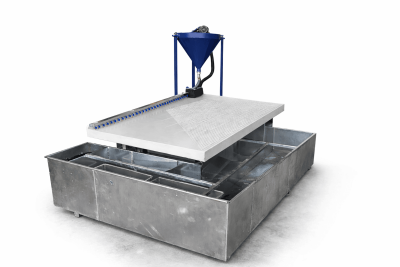

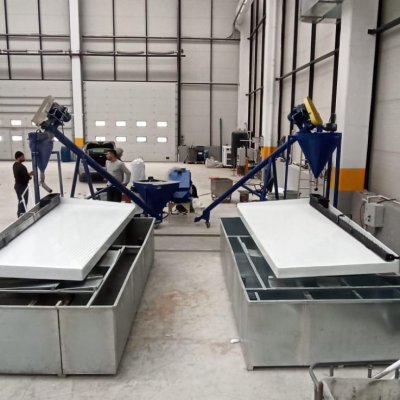

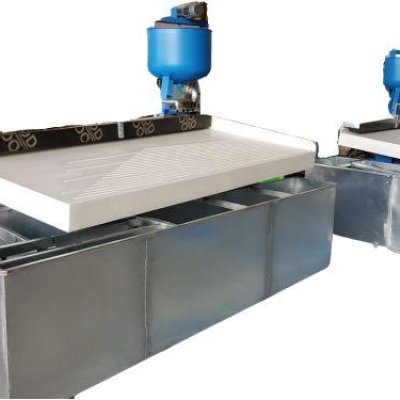

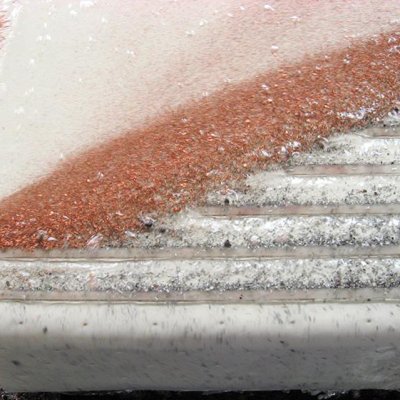

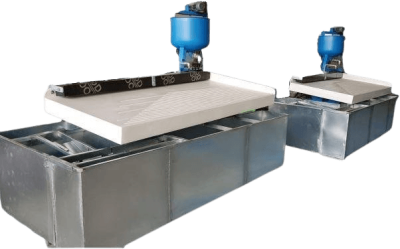

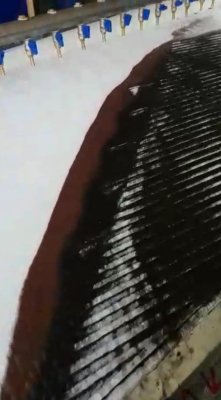

Shaking Table
Our shaking tables, which we have been manufacturing since 1997, utilize the difference in specific gravity between two ores for ore enrichment. Our shaking tables allow for fine water flow adjustment with precise ball valves, minimizing leakage rates. Being of the gearbox type, our shaking tables do not incur high maintenance costs, and angle and discharge adjustments can be easily made. We manufacture two types of shaking tables: S200 and S900.
Product Description
Our shaking tables, which we have been manufacturing since 1997, perform ore enrichment by utilizing the specific gravity difference between two minerals.
Our shaking tables allow for precise water adjustment via sensitive ball valves, reducing the loss rate to a minimum.
Being a gearless type that does not create high costs or maintenance expenses, the angle and discharge settings of our shaking tables can be easily adjusted.
We manufacture two types of shaking tables, S200 and S900;
| Technical Specifications | S200 | S900 | S1200 |
|---|---|---|---|
| Capacity (kg/h) | < 200 kg / hour | < 900 kg / hour | < 1500 kg / hour |
| Motor Power (kW) | 0.37 | 1.5 | 2.2 |
| Working Area (m²) | 1.2 | 5.1 | 7.6 |
| Water Consumption (lt/min) | 10 – 25 | 20 – 40 | 30 – 60 |
| Dimensions (mm) | 1640 × 830 × 1000 | 3000 × 1500 × 1400 | 4500 × 1650 × 1400 |
| Weight (kg) | 160 kg | 450 kg | 580 kg |
Technical Specifications
| Technical Specifications | S200 | S900 | S1200 |
|---|---|---|---|
| Capacity (kg/h) | < 200 kg / hour | < 900 kg / hour | < 1500 kg / hour |
| Motor Power (kW) | 0.37 | 1.5 | 2.2 |
| Working Area (m²) | 1.2 | 5.1 | 7.6 |
| Water Consumption (l/min) | 10 – 25 | 20 – 40 | 30 – 60 |
| Dimensions (mm) | 1640 × 830 × 1000 | 3000 × 1500 × 1400 | 4500 × 1650 × 1400 |
| Weight (kg) | 160 kg | 450 kg | 580 kg |

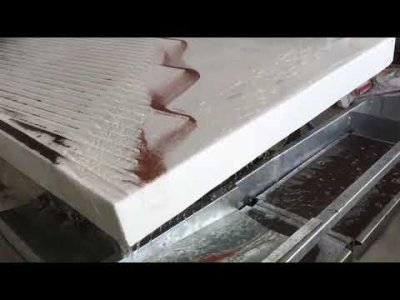

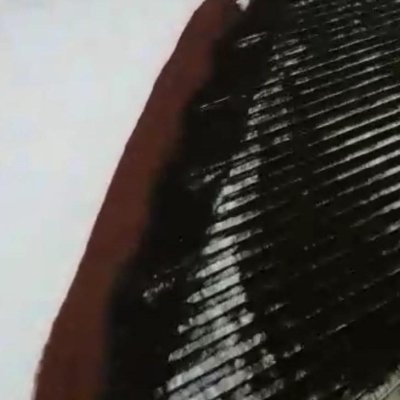

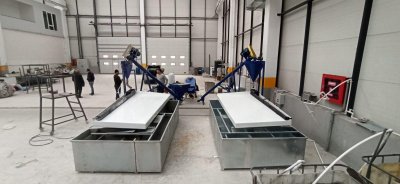

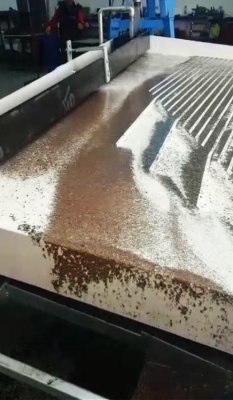

Product Images
Product Videos
Get a Quote
Other Products

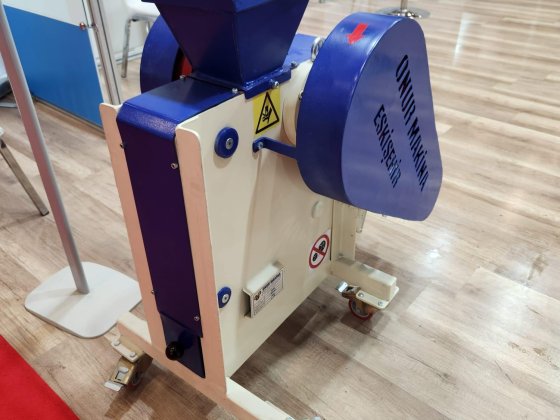

Jaw Crusher
Jaw crushers break large stones using high pressure force applied to the material. Mechanical pressure is applied using the two jaws of the crusher; one is fixed while the other performs an elliptical
Discover

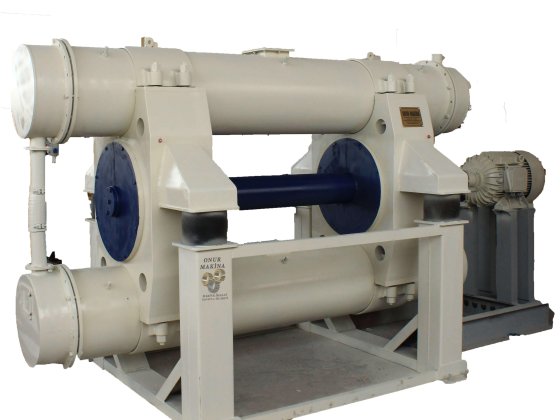

Vibratory Mill
Mills that can be used as rod and ball mills provide crushing and grinding by creating friction forces along with vibration of the rods and balls inside. With heat-treated grinding media, it can perf
Discover

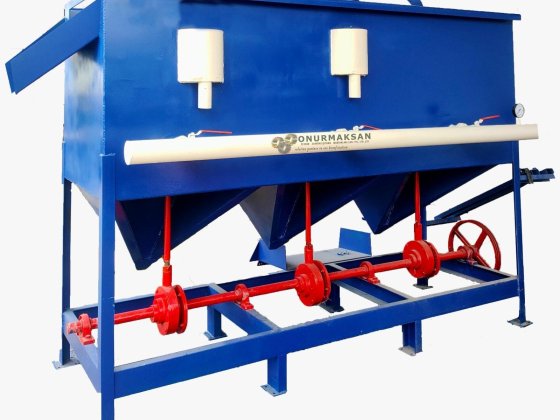

Jig
The Jig can perform ore enrichment up to 40mm. Maximum efficiency is aimed for thanks to the 1st class body material used and the high-torque drive system. 1mm and 2mm high-strength polyurethane scre
Discover
Gemini Table
Gemini Table (For precious metals) Also known as a precious metal table, the Gemini Table operates on the principle of specific gravity. It is ideal for grain sizes between 30 microns and 2 mm. It i
Discover

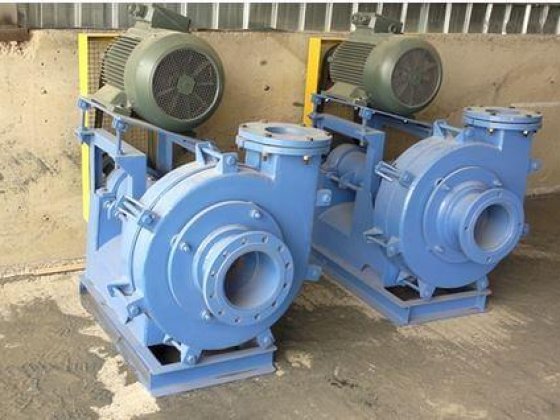

Slurry Pump
These types of pumps, thanks to the agitator mounted on the pump shaft, enable the discharge of liquids by reducing their density. They are used for water discharge, heavy septic tanks, tunnel works,
Discover
Conveyor Belt
Not only for the mining sector, but for every field where belt production is present, such as food, automation, soil products, etc. We provide custom manufacturing in desired sizes and dimensions sp
Discover

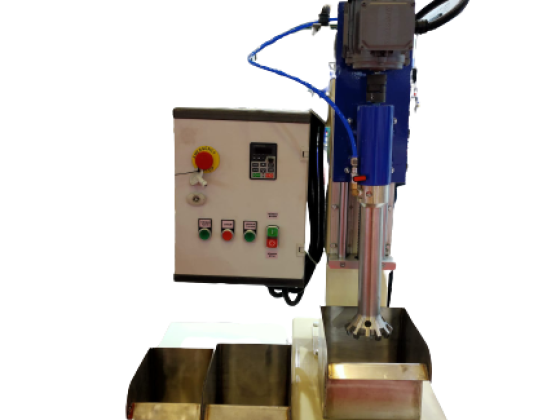

Flotation Device
Flotation (Denver type) Body is manufactured from steel sheet. Rotation speed can be adjusted via speed control. Features protective motor start-stop buttons with a digital display. Stainless st
Discover

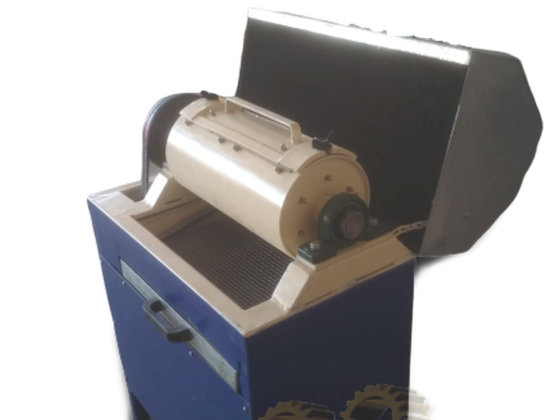

D Series Ball Mill
Our D series batch-type ball mills are designed for grinding small quantities of materials. The rotation speed of the drum, the ball sizes, and the shape of the drum are important factors for the gri
Discover
Ring Grinder
Our HD series Disc (Ring) Mills are a grinding unit specially designed to achieve the grinding of much smaller materials such as glass, soil, slag, metal oxides, and ceramic materials. This mill can
Discover

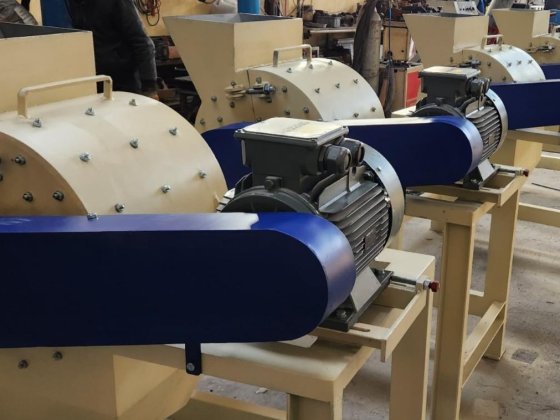

Hammer Breaker
